Metal tags

prod_metal_tags_3076_3078-opt

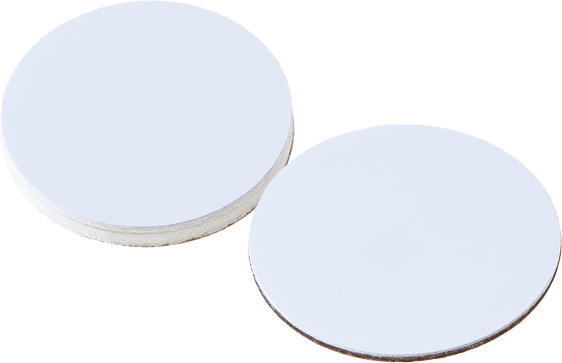

Metal tags are special RFID tags suitable for use in metallic environments.

Design & Applications

In general, metal creates problems for the life of RFID applications, which is why we offer special metal tags that resolve this issue. Metal tags are customized products – special tests are carried out for each and every one of the applications specified by our customers, with regard to the environment, the size of the tag, reader antenna and specific chip technology. We offer our customers samples for initial testing.

Features

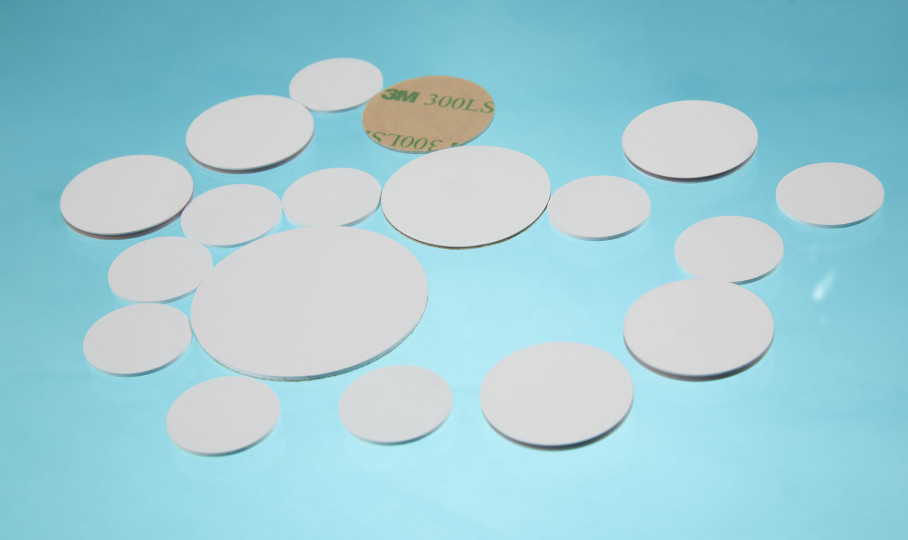

  • Material: PVC, PETG, PC
  • Spacers: foam or ferrite
  • Standard diameters: 27, 30 and 50 mm
  • Possibility of an adhesive layer for easy attachment
  • Suitable for indoor and outdoor applications
  • Can be personalized by full colour printing

Metal tag construction

prod_metal_tags_construction

  1. disc tag
  2. foam or ferrite pad
  3. self-adhesive foil

Optional adhesive layer

prod_metaltags_3076_mensi-opt
prod_metaltags_3078_vetsi-opt

Available chip technologies

Manufacturer 125 kHz 13.56 MHz
EM Microelectronic EM4102, EM4200, EM4305, EM4450
NXP Hitag® 1, Hitag® 2, Hitag® S 256bit, Hitag® S 2048bit MIFARE Ultralight® C, MIFARE Ultralight® EV1, MIFARE® Classic 1K EV1, MIFARE® Classic 4K EV1, MIFARE® DESFire® 256B EV1, MIFARE® DESFire® 2K EV1/EV2, MIFARE® DESFire® 4K EV1/EV2, MIFARE® DESFire® 8K EV1/EV2, MIFARE® Plus® SE, MIFARE® Plus® S 2K, MIFARE® Plus® S 4K, MIFARE® Plus® X 2K, MIFARE® Plus® X 4K, MIFARE® Plus® EV1 2K, MIFARE® Plus® EV1 4K
I-Code® SLIX
NTAG213, NTAG215, NTAG216
SmartMX (JCOP)
Infineon MIFARE® NRG SLE66R35 1K
Microchip – Atmel ATA5575M1, ATA5575M2, ATA5577, Q5
Legic® Prime: MIM256, MIM1024
Advant: ATC256-MV410, ATC1024-MV110, ATC1024-MV010, ATC4096-MP311
CTC 4096-MP410, CTC 4096-MM410
Silicon Craft SIC7999 (HDX)

Other ICs are available upon request.
