Design & Applications

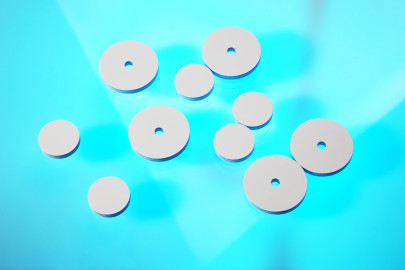

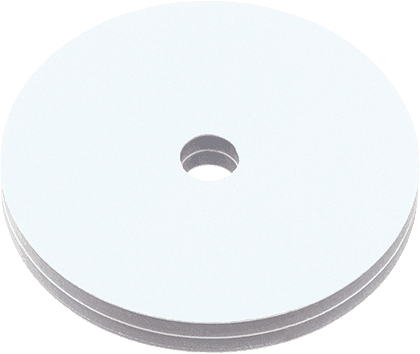

Coin tags can be used in various applications, such as tokens in vending machines or for identifying objects. They can be further personalized by full color printing with a logo, a number or any other graphics of your choice.
Features
- Material: PVC, PETG, PC
- Colours: white or transparent
- Diameters: 20 mm, 27 mm, 30 mm, 50 mm
- Thickness: 1–3 mm depending on application
- Operating temperature: depending on the type of material
- Humidity resistance: suitable for indoor or outdoor use
- Possibility of a central hole or adhesive layer

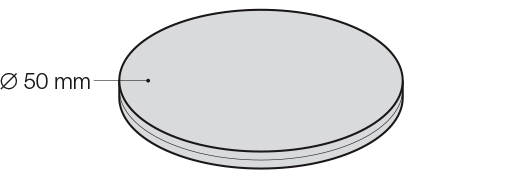

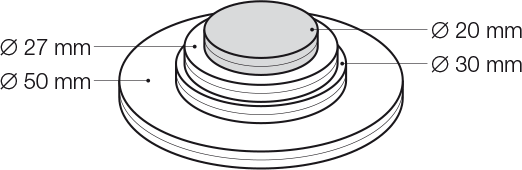

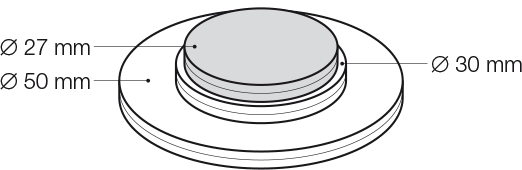

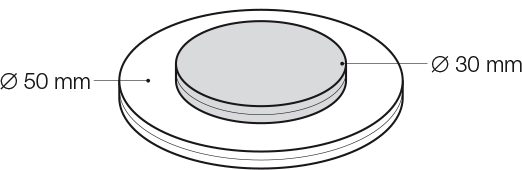

Diameters
Available chip technologies
| Manufacturer | 125 kHz | 13.56 MHz |
| EM Microelectronic | EM4102, EM4200, EM4305, EM4450 | |
| NXP | Hitag® 1, Hitag® 2, Hitag® S 256bit, Hitag® S 2048bit | MIFARE Ultralight® C, MIFARE Ultralight® EV1, MIFARE Classic® 1K EV1, MIFARE Classic® 4K EV1, MIFARE® DESFire® 256B EV1, MIFARE® DESFire® 2K EV1/EV2, MIFARE® DESFire® 4K EV1/EV2, MIFARE® DESFire® 8K EV1/EV2, MIFARE Plus® SE, MIFARE Plus® S 2K, MIFARE Plus® S 4K, MIFARE Plus® X 2K, MIFARE Plus® X 4K, MIFARE Plus® EV1 2K, MIFARE Plus® EV1 4K I-Code® SLIX NTAG213, NTAG215, NTAG216 SmartMX (JCOP) |
| Infineon | NRG SLE66R35 1K | |
| Microchip – Atmel | ATA5575M1, ATA5575M2, ATA5577, Q5 | |
| Legic® | Prime: MIM256, MIM1024 Advant: ATC256-MV410, ATC1024-MV110, ATC1024-MV010, ATC4096-MP311 CTC 4096-MP410, CTC 4096-MM410 |
|
| Silicon Craft | SIC7999 (HDX) |
Other ICs are available upon request.
