Design & Applications
Despite its exceptional thinness, Teardrop is designed to withstand harsh environment and be easily attachable to an ordinary key-ring. Teardrops present an excellent alternative to contactless cards, finding multiple uses within the access and security areas, as they are efficient, practical, convenient and easy to use.
Features
- Material: Polyamide – high impact material
- Colours: black, blue, green, red and yellow
- Operating temperature: −25 ˚C to 50 ˚C
- Humidity resistance: suitable for indoor and outdoor use
- Resistant to dust, dirt and humidity
- Possibility to combine two technologies in one key fob

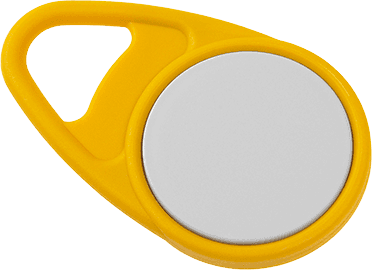

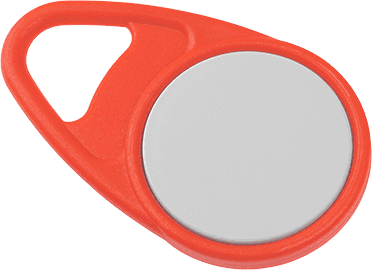

Available colours
Different colours and chips are available for your applications.
Personalization
The product can be personalized by full colour printing or long-lasting laser engraving, using your logo, a number or any graphic motive.
Dimensions
Available chip technologies
| Manufacturer | 125 kHz | 13.56 MHz |
| EM Microelectronic | EM4102, EM4200, EM4305, EM4450 | |
| NXP | Hitag® 1, Hitag® 2, Hitag® S 256bit, Hitag® S 2048bit | MIFARE Ultralight® C, MIFARE Ultralight® EV1, MIFARE Classic® 1K EV1, MIFARE Classic® 4K EV1, MIFARE® DESFire® 256B EV1, MIFARE® DESFire® 2K EV1/EV2, MIFARE® DESFire® 4K EV1/EV2, MIFARE® DESFire® 8K EV1/EV2, MIFARE Plus® SE, MIFARE Plus® S 2K, MIFARE Plus® S 4K, MIFARE Plus® X 2K, MIFARE Plus® X 4K, MIFARE Plus® EV1 2K, MIFARE Plus® EV1 4K I-Code® SLIX NTAG213, NTAG215, NTAG216 SmartMX (JCOP) |
| Infineon | NRG SLE66R35 1K | |
| Microchip – Atmel | ATA5575M1, ATA5575M2, ATA5577, Q5 | |
| Legic® | Prime: MIM256, MIM1024 Advant: ATC256-MV410, ATC1024-MV110, ATC1024-MV010, ATC4096-MP311 CTC 4096-MP410, CTC 4096-MM410 |
|
| Silicon Craft | SIC7999 (HDX) |
Other ICs are available upon request.
