Design & Applications
Features
- Standard format ISO 7810, 7816
- Clamshell format also possible
- Matt or glossy surfaces
- With or without magnetic strip
- Operating temperature: −20 °C to 50 °C
Wide variety

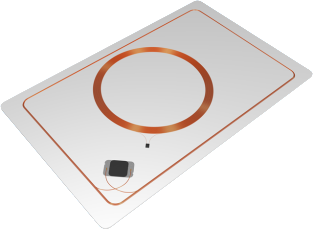

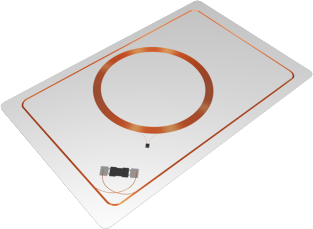

Our contactless cards are available with an exceptionally wide variety of chips and each chip is optimized for ultimate readability. LUX-IDent also offers combi chip cards with two chips on one card. Different combinations in low and high frequency are possible.
Magnetic strip
A magnetic strip (HiCo, LoCo) can be added for multiusage cards.
Dimensions

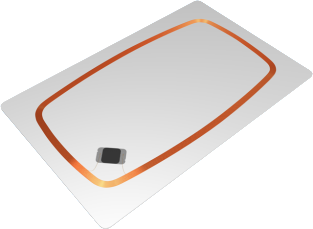

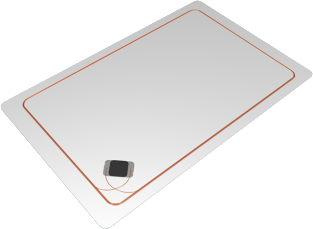

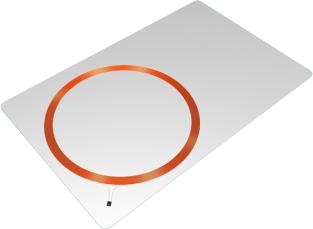

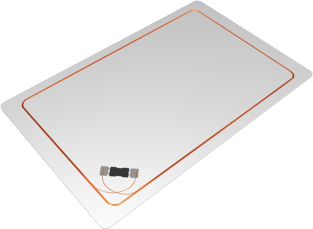

The drawing shows one of many antenna sizes / formats and chip positioning.
Available chip technologies
| Manufacturer | 125 kHz | 13.56 MHz |
| EM Microelectronic | EM4102, EM4200, EM4450 | |
| NXP | Hitag® 1, Hitag® 2, Hitag® S 256bit, Hitag® S 2048bit | MIFARE Ultralight® C, MIFARE Ultralight® EV1, MIFARE Classic® 1K EV1, MIFARE Classic® 4K EV1, MIFARE® DESFire® 256B EV1, MIFARE® DESFire® 2K EV1/EV2, MIFARE® DESFire® 4K EV1/EV2, MIFARE® DESFire® 8K EV1/EV2, MIFARE Plus® SE, MIFARE Plus® EV1 2K, MIFARE Plus® EV1 4K I-Code® SLIX NTAG213, NTAG215, NTAG216 SmartMX (JCOP) |
| Infineon | NRG SLE66R35 1K | |
| Microchip – Atmel | ATA5577 Q5 |
|
| Legic® | Prime: MIM256, MIM1024 Advant: ATC256-MV410, ATC1024-MV110, ATC1024-MV010, ATC4096-MP311 CTC 4096-MP410, CTC 4096-MM410 |
Other ICs are available upon request.
